PVC Strip Door Kits

The premier strip door system in the industry, with pre-cut, pre-punched strips  completely prepared for your opening, and ready for immediate installation.  All PVC Strip Door Kits employ innovative mounting hardware systems that make installation fast, easy and convenient.   Clearway offers a full range of PVC strip sizes and types (see list below).

Save Energy

Reduce energy costs by maintaining air separation and environmental control.

Maintain Temperature

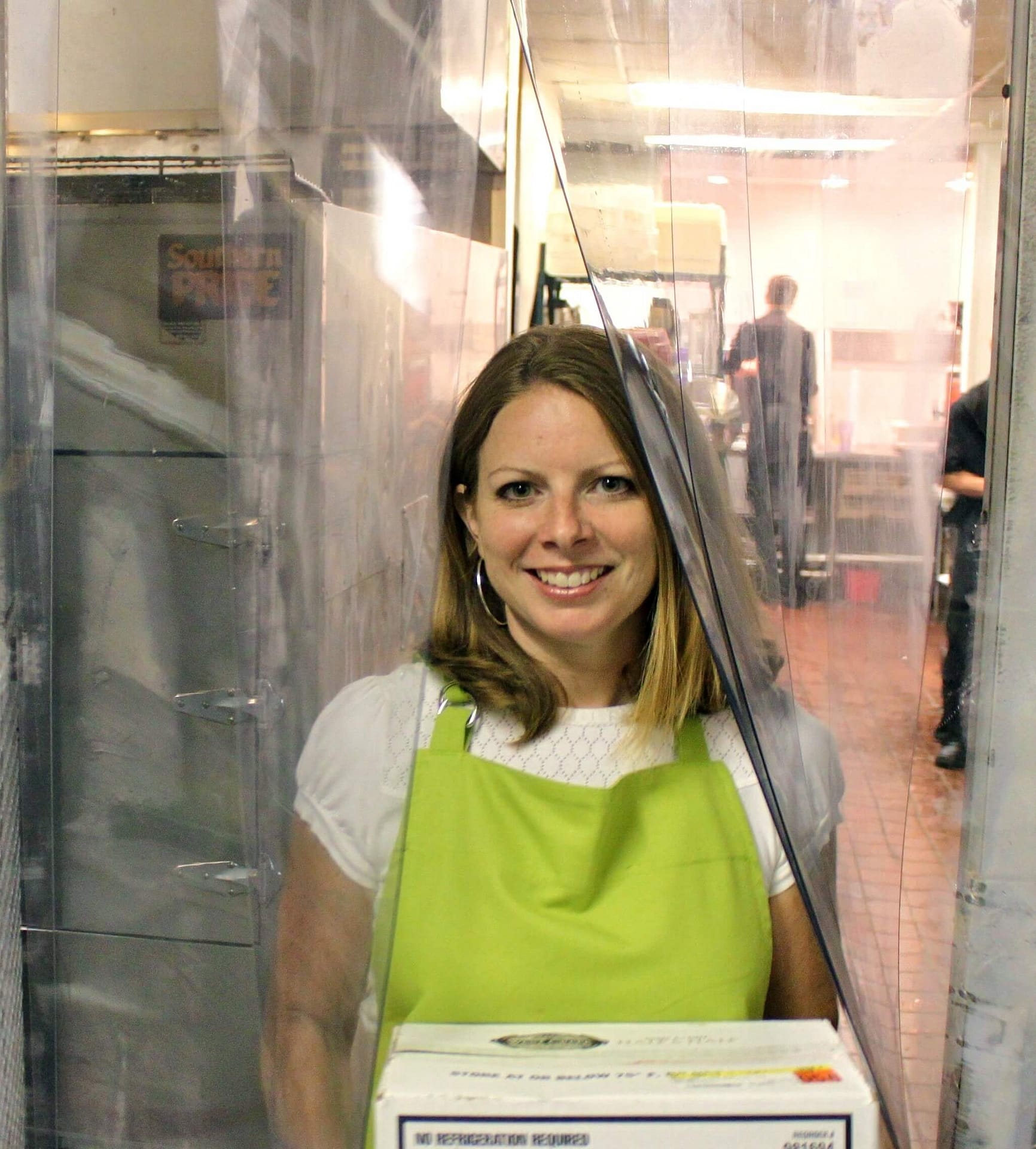

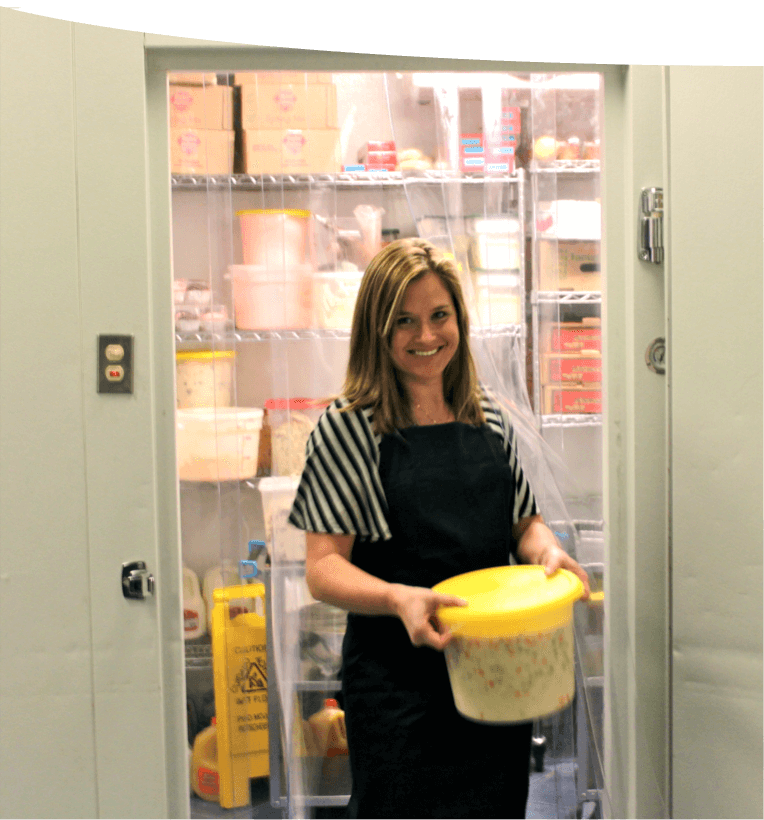

Keep food products stored at the right temperature. Keep your employees comfortable in their work environment.

pests

Keep Pests Out

Stop insects and birds from entering your facility and annoying your people and impacting your process.

Previous
Next

Fast, Easy Installation

Install PVC strips quickly with our simple, smart PVC strip mounting kits.

versatile

Versatile

Several types and sizes of flexible PVC strips to give you every option for your application.

Durable and Reliable

Lifetime Warranty on all of our Heavy Duty Galvanized Steel and Aluminum Mounting Hardware Systems.

airbornecontaminants

Stop Airborne Contaminants

Keep dust, particles and other airborne contaminants where they belong. Control your environment and protect your people.

Noise Control

Separate and insulate loud, noisy manufacturing operations from the rest of your building and your team.

safety

Safety and Visibility

Made for maximum visibility so employees can see oncoming traffic. Traffic can flow freely and safely.

Step 1: Choose the right mounting hardware system

Clearway offers 3 different strip door mounting hardware systems:

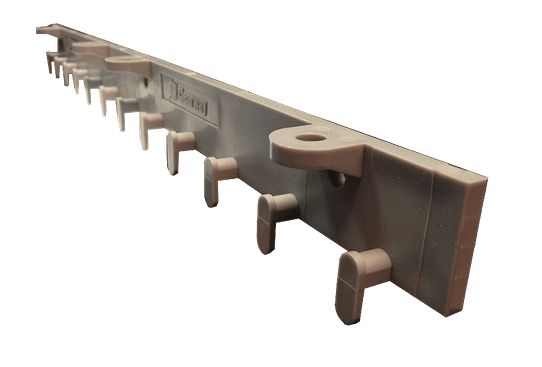

QMMD Logo
QMHD Logo

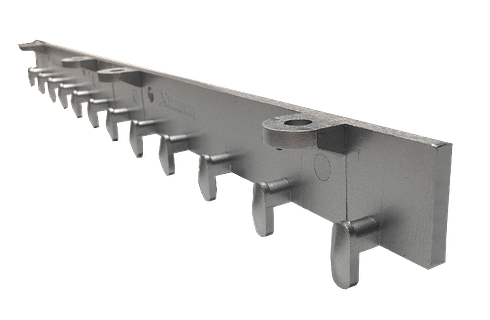

QuickMount HD Hardware

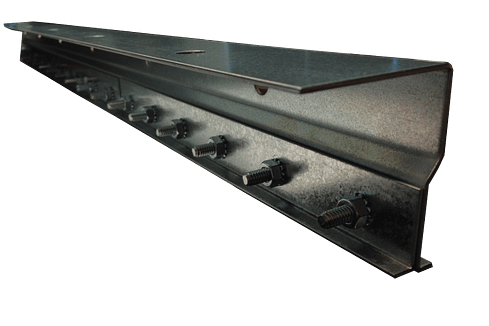

Bolt-On Universal Hardware Website Angle Profile
Need more info about our mounting hardware systems?

Learn more about the mounting hardware systems and which is best to use in different situations by watching this quick 2 minute video.

Step 2: Choose the right PVC strip type

Clearway offers a variety of PVC strips for a wide range of applications:

Standard Smooth

Crystal clear transparent, flexible smooth vinyl for indoor or outdoor applications from -10° to 150°. Versatile and economical material for a wide range of applications.

Low Temp Non-Reinforced

Made with the softest, most flexible, low temp formulation on the market, to prevent strips from cracking in cold temperatures. Designed for freezer applications to -40° F.

Low Temp Reinforced

Low Temp vinyl, reinforced with nylon strings embedded in the center of the strip, to prevent elongation or contraction of the flexible PVC. Designed for freezer applications to -40° F.

standard durarib bulk roll

Standard DuraRib

Durable ribbed material reduces scratching from loads passing through the opening. Designed for heavy-duty, high-traffic applications in environment from -10° to 150°.

low temp durarib bulk roll

Low Temp DuraRib

Low temp, ribbed material reduces scratching from loads passing through the opening. Made for heavy-duty, low temperature applications in environments from -40° to 90°.

AIY-DuraRib-Bulk-Roll

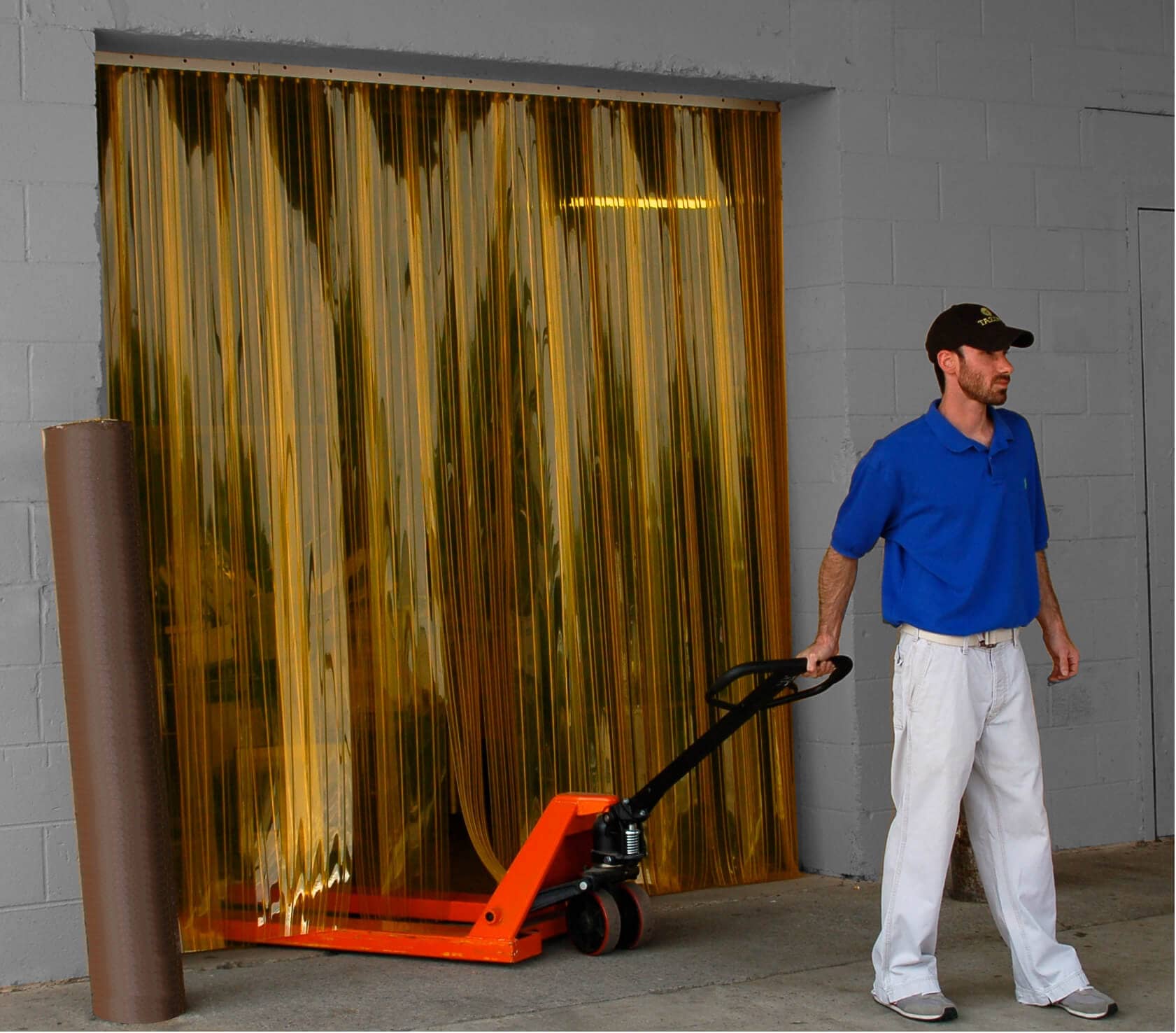

Anti-Insect Yellow DuraRib

Our exclusive Anti-Insect formulation repels flying insects with Citronella and prevents infiltration of the facility. Yellow color inhibits insect’s ability to detect light behind curtain.

PVC-Anti-Static-Smooth-ref-180

Anti-Static Smooth

Designed for static-sensitive or high-dust applications. For data centers/server rooms, clean rooms and electronics, manufacturing facilities. To be used in indoor environments.

PVC-Stop-Bac-Smooth

Stop-Bac Smooth

Our exclusive anti-bacterial agent kills 99.9% of bacteria on the surface of the PVC strip. Designed for food and medical applications where bacterial safety is paramount.

Stop-Bac-DuraRib-1212

Stop-Bac DuraRib

Our exclusive anti-bacterial agent kills 99.9% of bacteria on the surface of the PVC strip. Designed for high-traffic applications, our DuraRib profile prevents scratches.

opaque black

Opaque Black

Flexible, opaque black vinyl material used to create a total sight barrier between areas. Ideal for openings in conveyor belt operations to prevent visual access behind the opening.

safety orange

Safety Orange

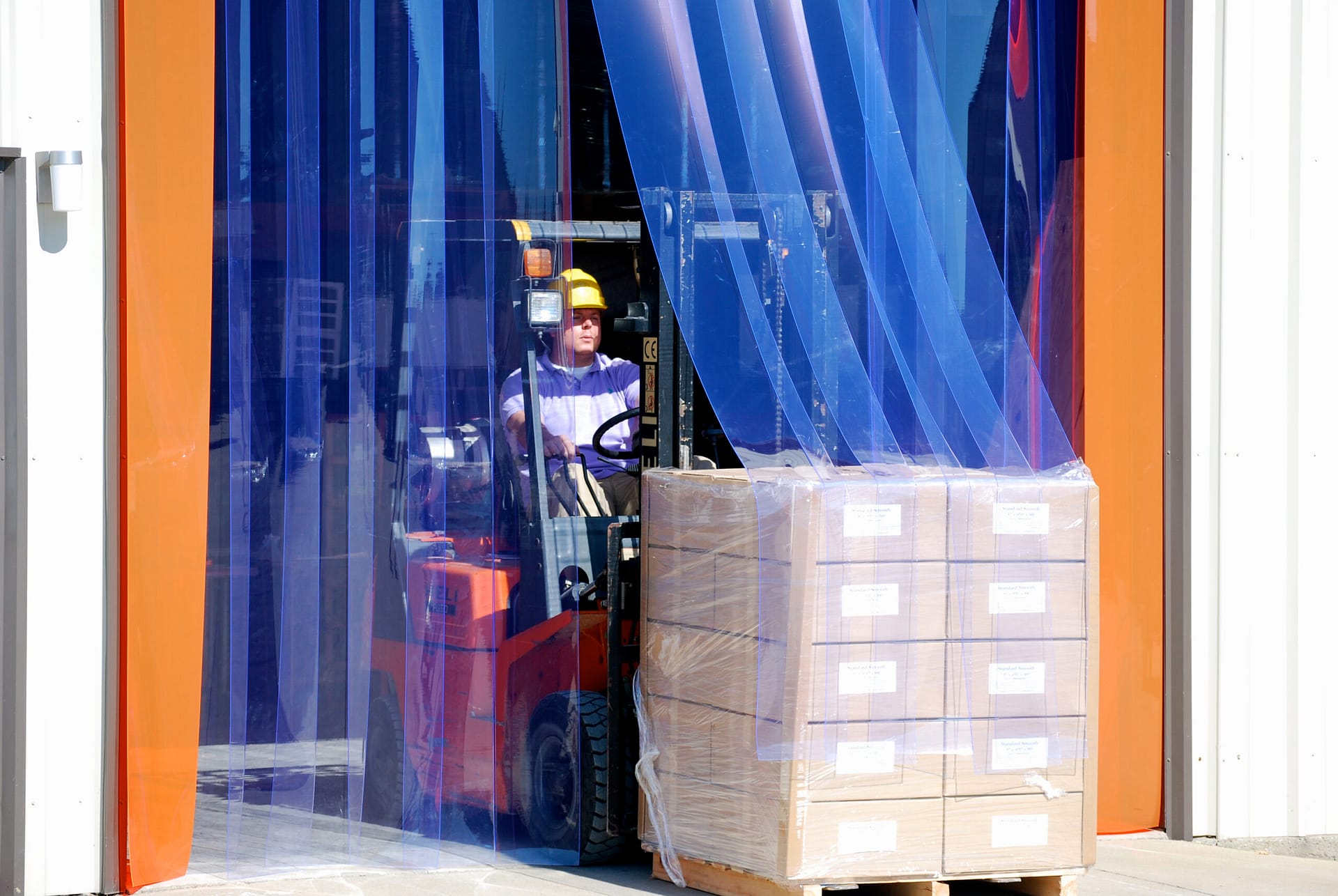

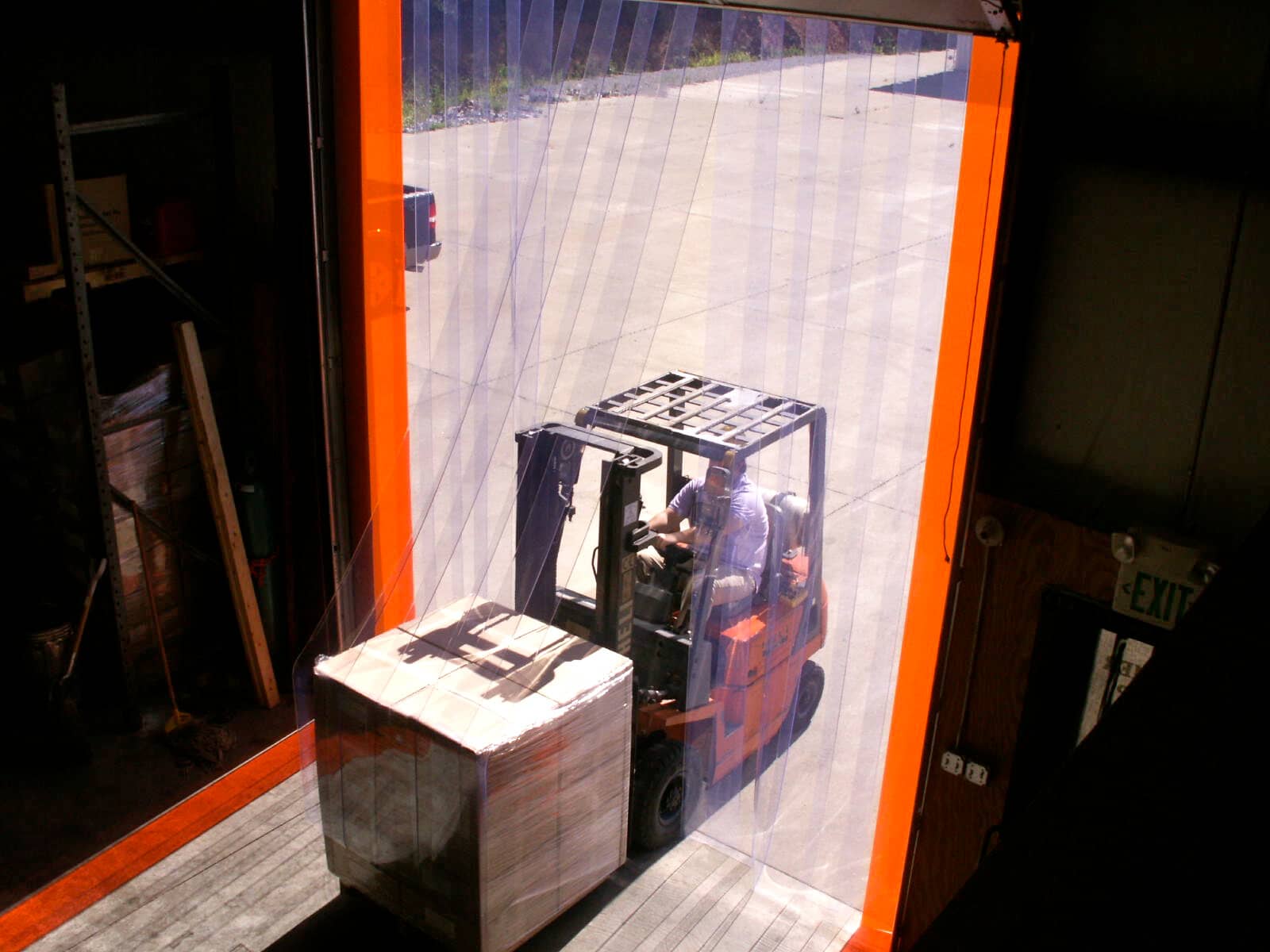

Highlights the outer edges of the opening, alerting employees and improving safety. Recommended for use as outer edge strips for strip doors with motorized traffic.

PVC-Stop-Bac-Smooth

Blue

Flexible, Blue PVC Strip Material designed to provide a colorful alternative to standard strips. Sometimes used for decorative or aesthetic purposes to match company colors.

screenflex red

Screenflex Red

Provides protection as a partial sight barrier against ultra-light and blue light radiation in welding applications. Screenflex Red is compliant with AWS and ISO standards.

screenflex bronze

Screenflex Bronze

Provides protection as a partial sight barrier against ultra-light and blue light radiation in welding applications. Screenflex Bronze is compliant with AWS and ISO standards.

screenflex green

Screenflex Green

Provides protection as a partial sight barrier against ultra-light and blue light radiation in welding applications. Screenflex Green is compliant with AWS and ISO standards.

Need more info about our PVC Strip Types?
Learn about the difference between Standard and Low Temp PVC strips by watching this quick 2 minute video.  Click play below.
Learn all about Smooth and DuraRib PVC strips and how to determine which one is right one for your application.  Click play below.

Step 3: Choose the right strip size

The height of your door opening is the primary consideration for choosing the right strip size (width x thickness).   All applications are slightly different but these basic guidelines will help select the best size for your door opening.

Guidelines for PVC Strip Size

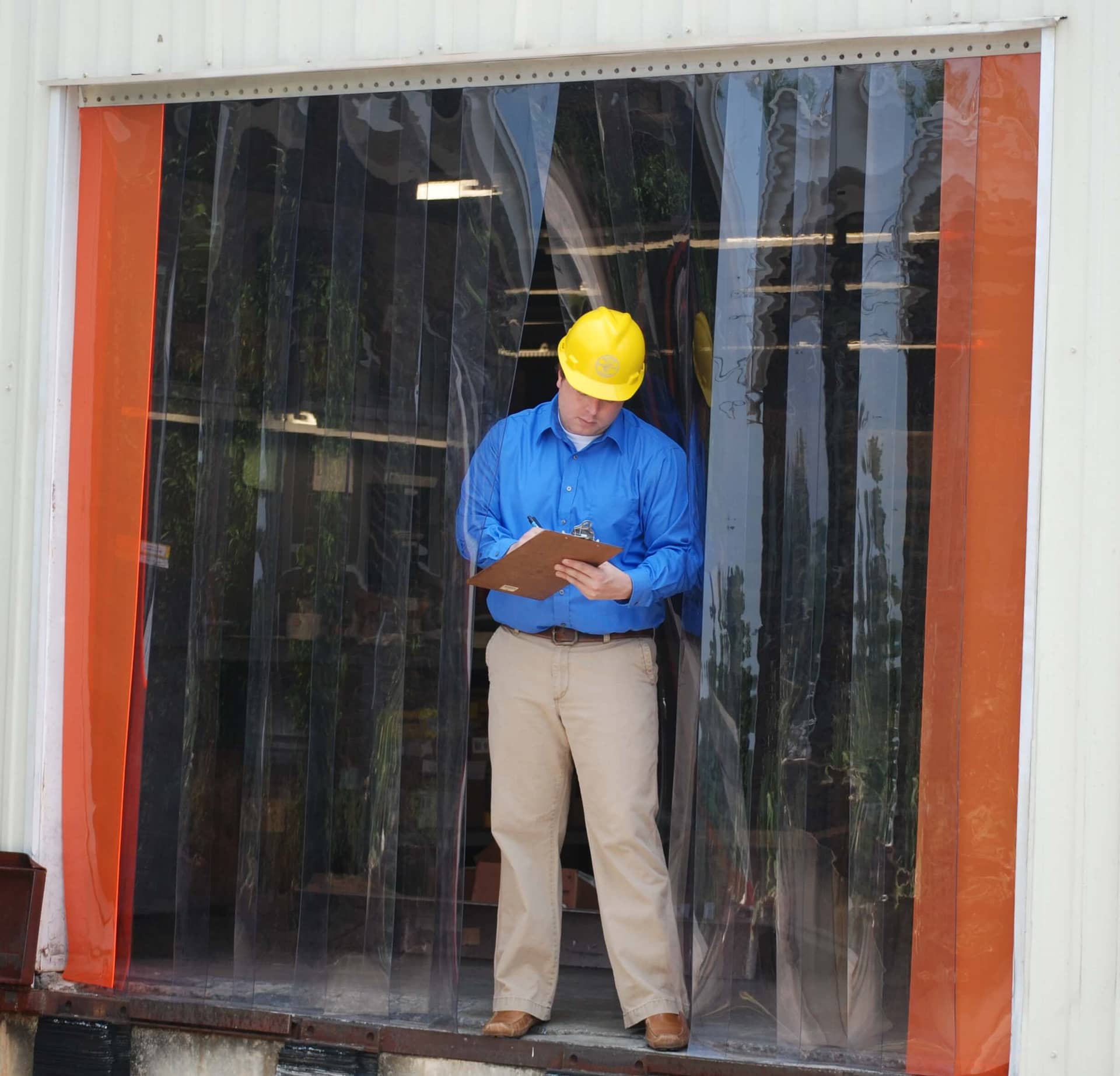

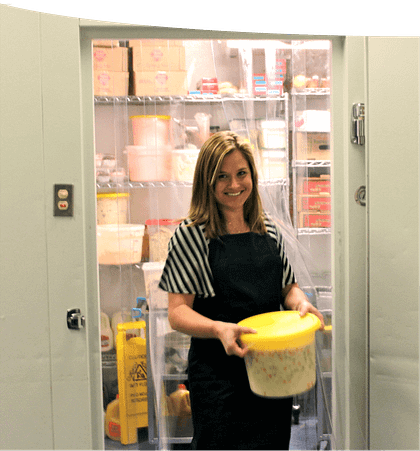

Door Openings 8' High or Less - Create a lightweight pedestrian strip door, easy to pass through.
4" x .060" or 6" x .060" PVC Strips

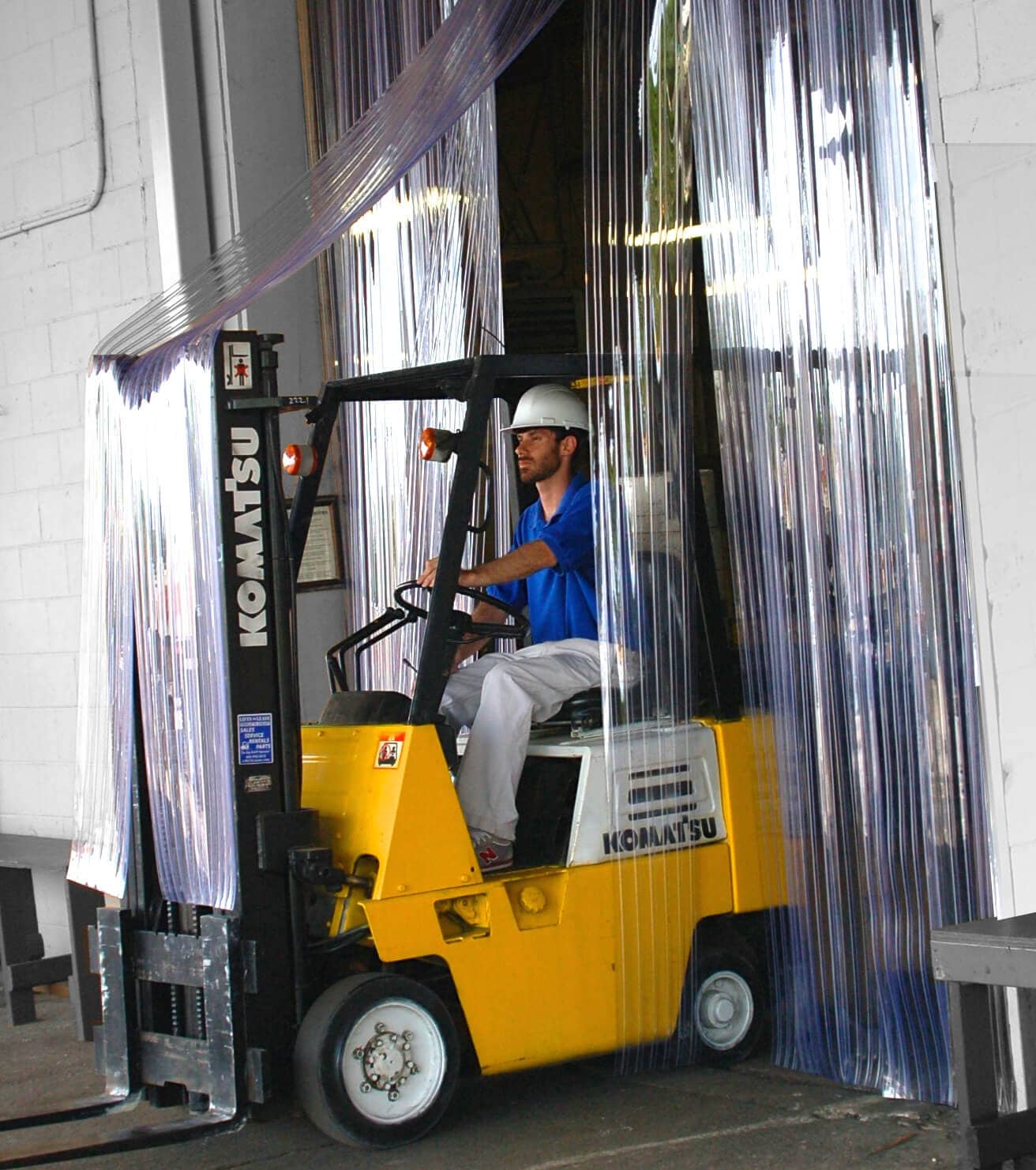

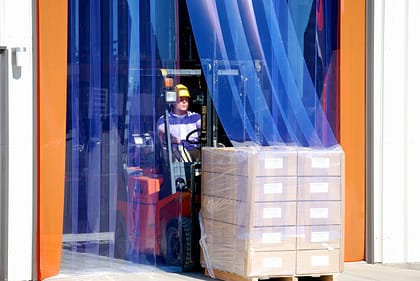

Door Openings 8' to 10' High - Create a strip door that can be used easily by a pedestrian but durable enough to face motorized traffic.
8" x .080" PVC Strips
Door Openings 10' to 14' High - Create a durable heavy-duty industrial strip door heavy enough to stop airflow in larger openings.
12" x .120" PVC Strips
Door Openings 15' Feet High or More - Create the ultimate heavy-duty strip door kit to seal off the largest openings in industrial facilities.
16" x .160" PVC Strips
Note:  Heavy wind or strong negative/positive airflow will create some situations where a wider/heavier size of strip will be more appropriate.
Need more info about PVC Strip Sizes?

Learn more about how to select the right width and thickness of PVC strip by watching this quick video.

Step 4: Choose the right strip overlap percentage

All PVC Strip Doors feature overlapped PVC strips, that create a seal of the doorway.  The amount of overlap is communicated by percentage.   Depending on the width of the PVC strips, different percentages of overlap are available.

Overlap Options for 4" Strip Door Kits

100% Overlap (2 inches each side)

Full Overlap

Overlap Options for 6" Strip Door Kits

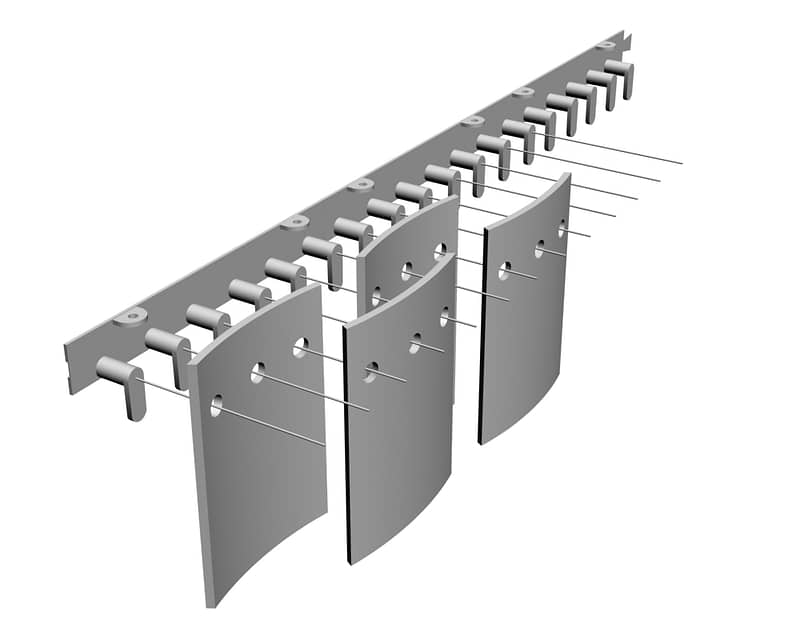

67% Overlap (2 inches each side)

Standard Overlap

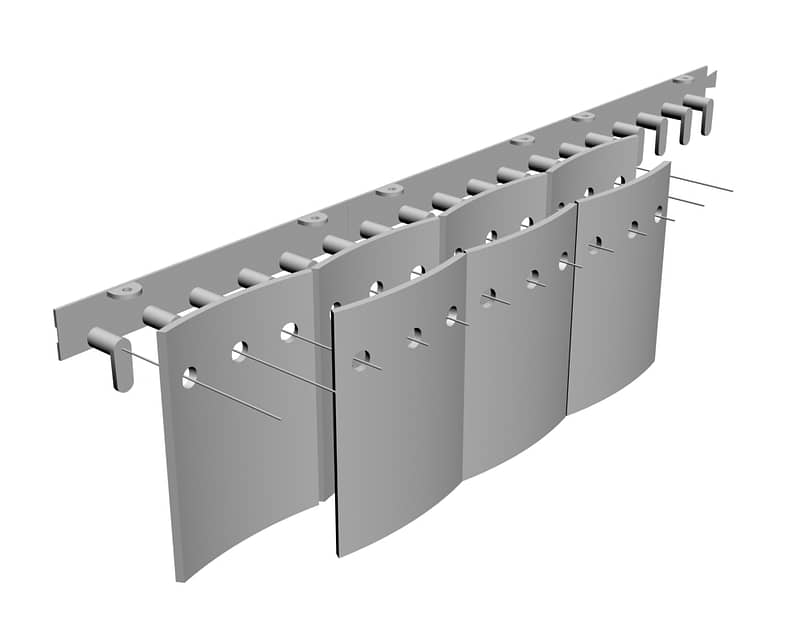

100% Overlap (4 inches one side)

Full Overlap

Overlap Options for 8" Strip Door Kits

50% Overlap (2 inches each side)

Standard Overlap

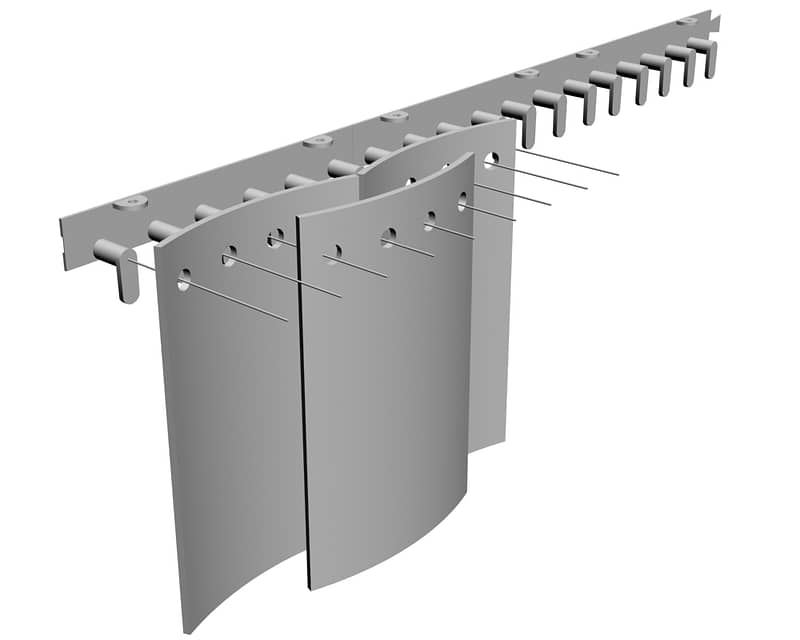

100% Overlap (4 inches each side)

Full Overlap

Overlap Options for 12" Strip Door Kits

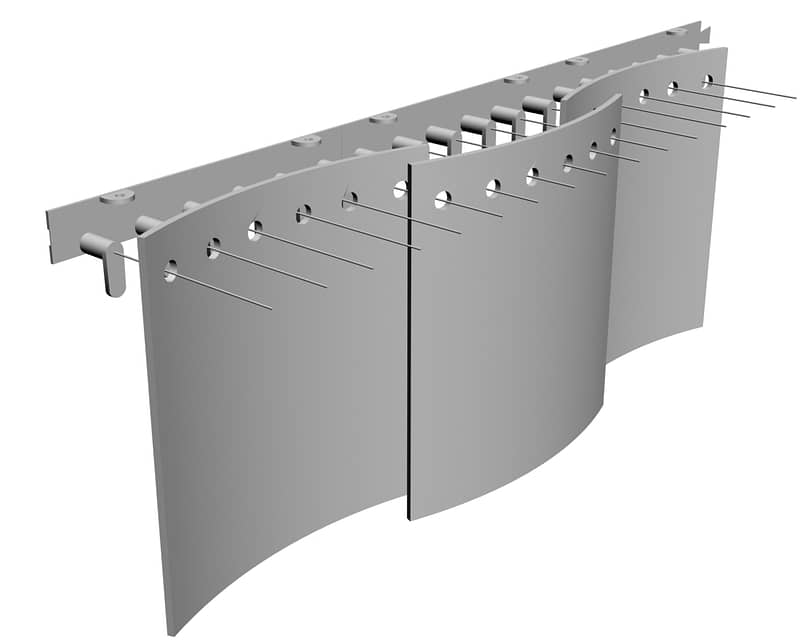

33% Overlap (2 inches each side)

67% Overlap (4 inches each side)

Standard Overlap

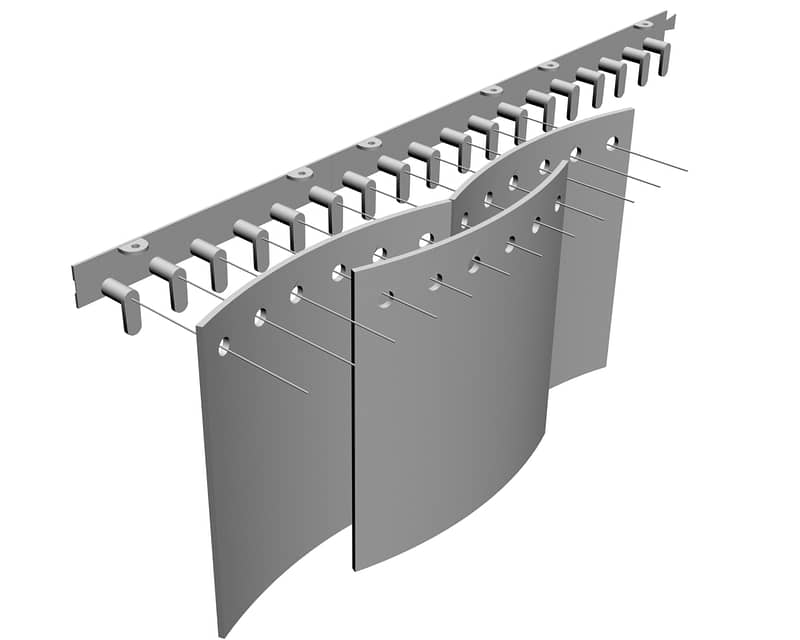

100% Overlap (6 inches each side)

Full Overlap

Overlap Options for 16" Strip Door Kits

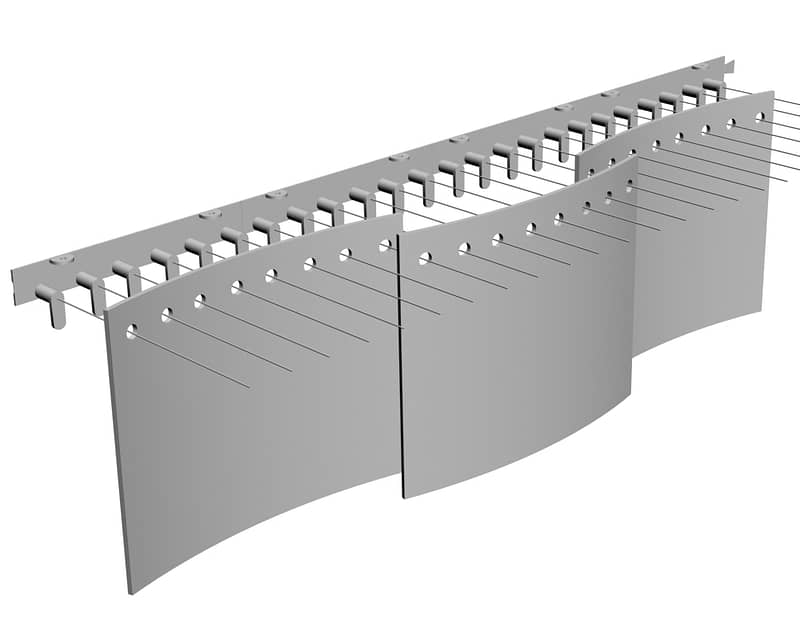

25% Overlap (2 inches each side)

50% Overlap (4 inches each side)

Standard Overlap

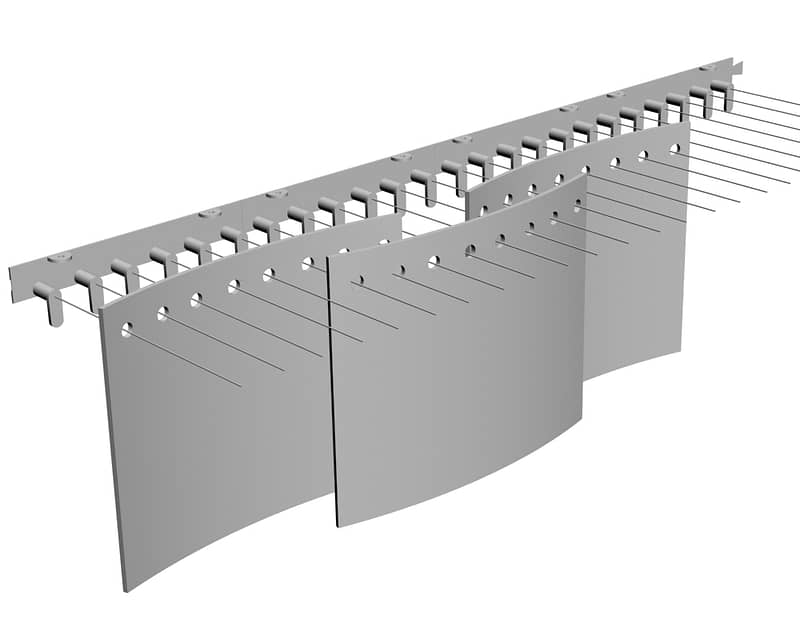

75% Overlap (6 inches each side)

100% Overlap (8 inches each side)

Full Overlap


Note:  Heavy wind or strong negative/positive airflow will create some situations where a Full Overlap will be more appropriate.

Need more info about Strip Overlap Percentages?

Learn more about how to select the proper overlap of PVC strip by watching this quick 2 minute video.

Request a quote or ask a question about PVC Strip Door Kits

Our team is ready to help with answers to your technical questions, quote requests, or anything else you might need.
